Description

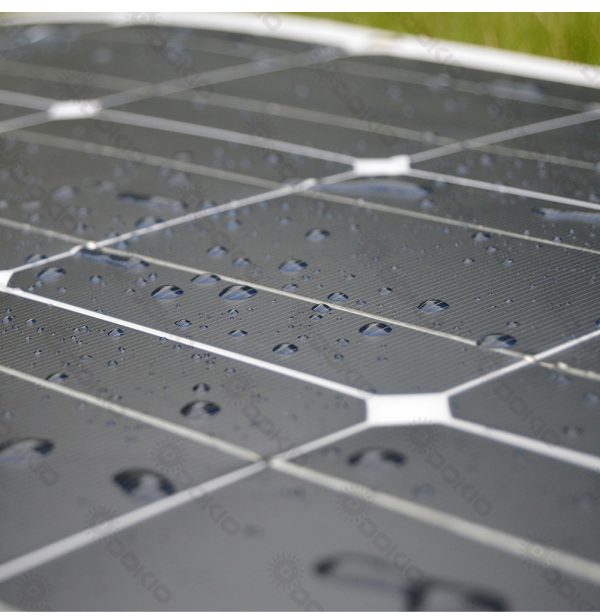

DOKIO 12V 50W Versatile Photo voltaic Panel China 12V Battery Cost Waterproof Monocrystalline Photo voltaic Panels Automotive/Boat 10A Controller

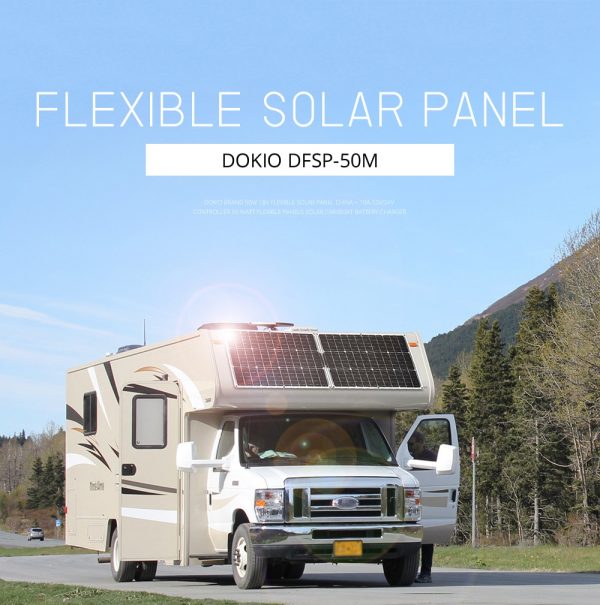

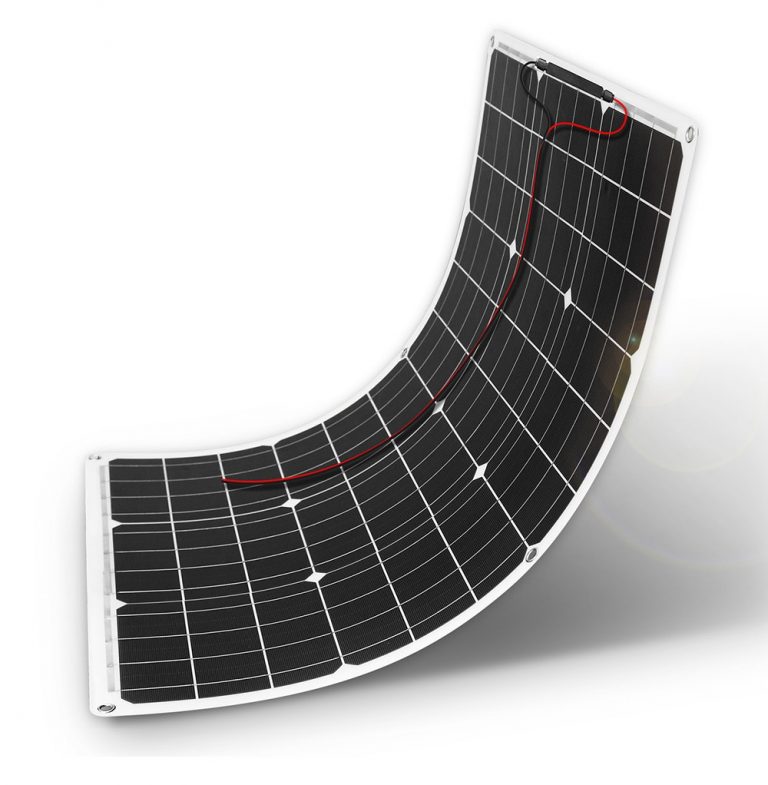

Flexibility: May be bent as much as 30 levels and will be utilized to irregular surfaces equivalent to RV roofs, boats, tents, vaulted roofs, and so forth.
Small measurement: As a result of its small measurement, it isn’t straightforward to be broken throughout transportation. It’s appropriate to be used in environments with inadequate house.
Mild weight: just one.5mm thick, weighs 1.1kg, straightforward to hold, disassemble and carry.
Straightforward to put in: Steel holes within the corners of the product for fixing screws and mounting.
Mannequin:DFSP-50MUSB
Most Energy(Pmax): 50W
Most Energy Voltage(Vmp):18.00V
Most Energy Present (Imp):2.78A
Open-Circuit Voltage (Voc): 22.50V
Brief-Circuit Present (Isc):3.03A
Most System Voltage: DC1000V
Most Sequence Fuse:15A
Nominal Working Cell Temp.(NOCT):-45 to 80℃
Weight: 0.6KG
Dimensions:690*540mm
(The above information relies on the laboratory normal check surroundings)
For discipline connections,use minimun No.12AWG copper wires insulated for a minimal 90℃
Normal Check Situations:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The scale is manually measured and there’s a sure error.）
The controller must be linked to the battery earlier than it may be used. Appropriate for lead-acid batteries
