Flexible Waterproof Solar Panel For Car/Boat/Home

Category:

Description

Dokio 12V 100W Versatile Monocrystalline Photo voltaic Panel For Automotive/Boat/ House Photo voltaic Battery Can Cost 12V Waterproof Photo voltaic Panel China

Mannequin:18VDFSP-100M

Most Energy(Pmax): 100W
Most Energy Voltage(Vmp):18.00V
Most Energy Present (Imp):5.56A
Open-Circuit Voltage (Voc): 22.50V
Quick-Circuit Present (Isc):5.81A
Most System Voltage: DC1000V
Most Sequence Fuse:15A
Nominal Working Cell Temp.(NOCT):-45 to 80℃
Weight: 1.1KG
Dimensions:1180*540mm

Mannequin:16VDFSP-100M

Most Energy(Pmax): 100W
Most Energy Voltage(Vmp):16.00V
Most Energy Present (Imp):6.25A
Open-Circuit Voltage (Voc): 20.00V
Quick-Circuit Present (Isc):6.5A
Most System Voltage: DC1000V
Most Sequence Fuse:15A
Nominal Working Cell Temp.(NOCT):-45 to 80℃
Weight: 1.KG
Dimensions:1055*540mm

(The above information relies on the laboratory commonplace check atmosphere)

For discipline connections,use minimun No.12AWG copper wires insulated for a minimal 90℃

Commonplace Check Situations:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The scale is manually measured and there’s a sure error.)

Distinction

16V 100W VS 18V 100W

18v100W, 4*9,36Cells.
16v100W, 4*8, 32Cells.

(When the 16v photo voltaic panel is electrically conductive, the necessities for daylight depth are larger than 18v.)

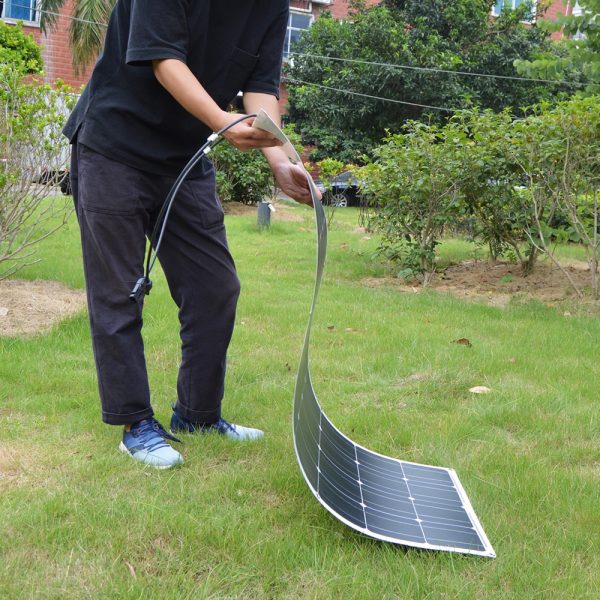

The principle characteristic is mild, straightforward to hold, and small house occupation.

Because of the particularity of the fabric. Versatile photo voltaic panels usually are not advisable to be positioned on the roof or open air for a very long time.

If positioned on a caravan. Want to make use of excessive temperature resistant glass glue to isolate the excessive temperature of the floor.

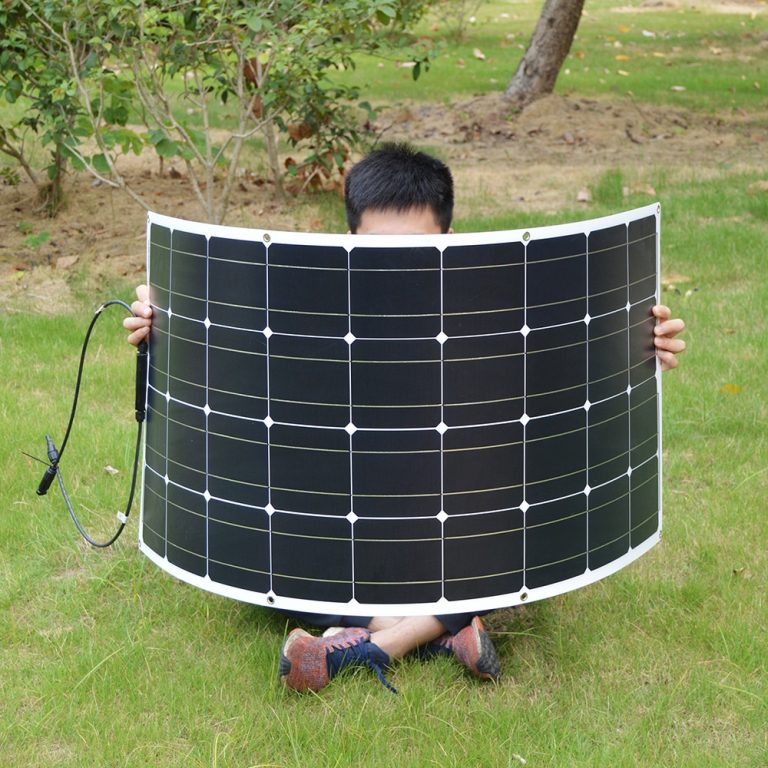

Product show(16V)
